Network Wide Configuration

Configuring Alert Settings

Sections:

Resources:

Overview:

  • In Cisco Meraki, the Network-wide Alert settings are designed to notify administrators about important events or changes in the network. These alerts can help you monitor the health, performance, and security of your Meraki network in real time
  • The alerting system allows you to be notified about various network issues or events, enabling faster responses and proactive network management

Alerts Overview

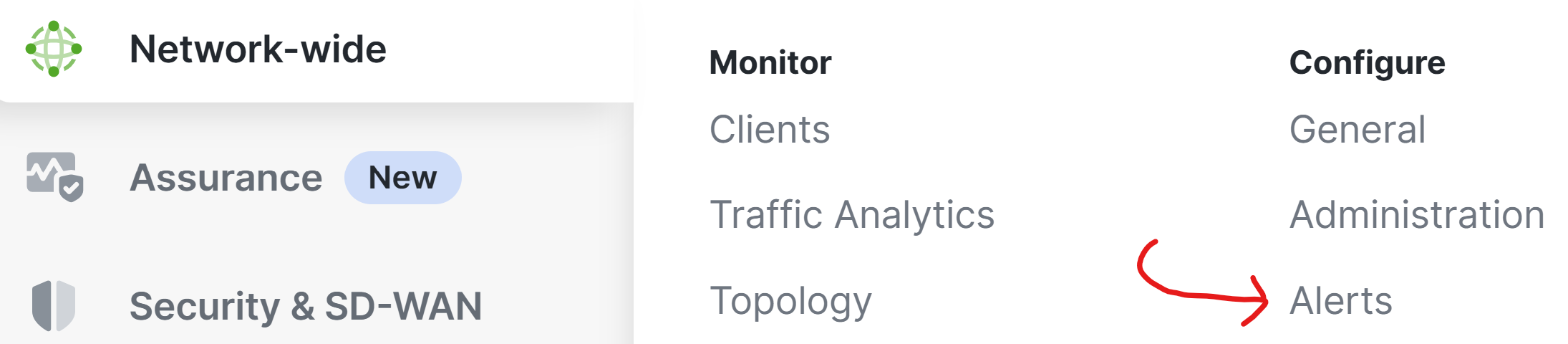

Alerts Page Menu

Network-wide Alerts

  • Network alerts and notifications are a crucial part of becoming a proactive network admin with the amount of network or device events that can occur
  • Meraki enables admins to set up network alerts via the Meraki Dashboard and the Meraki Mobile App
  • Network alerts can be configured by selecting the default recipients for selected alerts and by configuring additional recipients on a per-alert basis
  • Alert Recipient Options
    • All Network Admins (alerts sent to both full and read-only network admins but does not include organization admins)
    • Other Email Addresses (alerts sent to custom list of recipients)
  • Per Cisco, all network alerts will be sourced from the same email address and recommends admins and users to add 'alerts-noreply@meraki.com' as a trusted email source to avoid alerts being lost to a spam filter

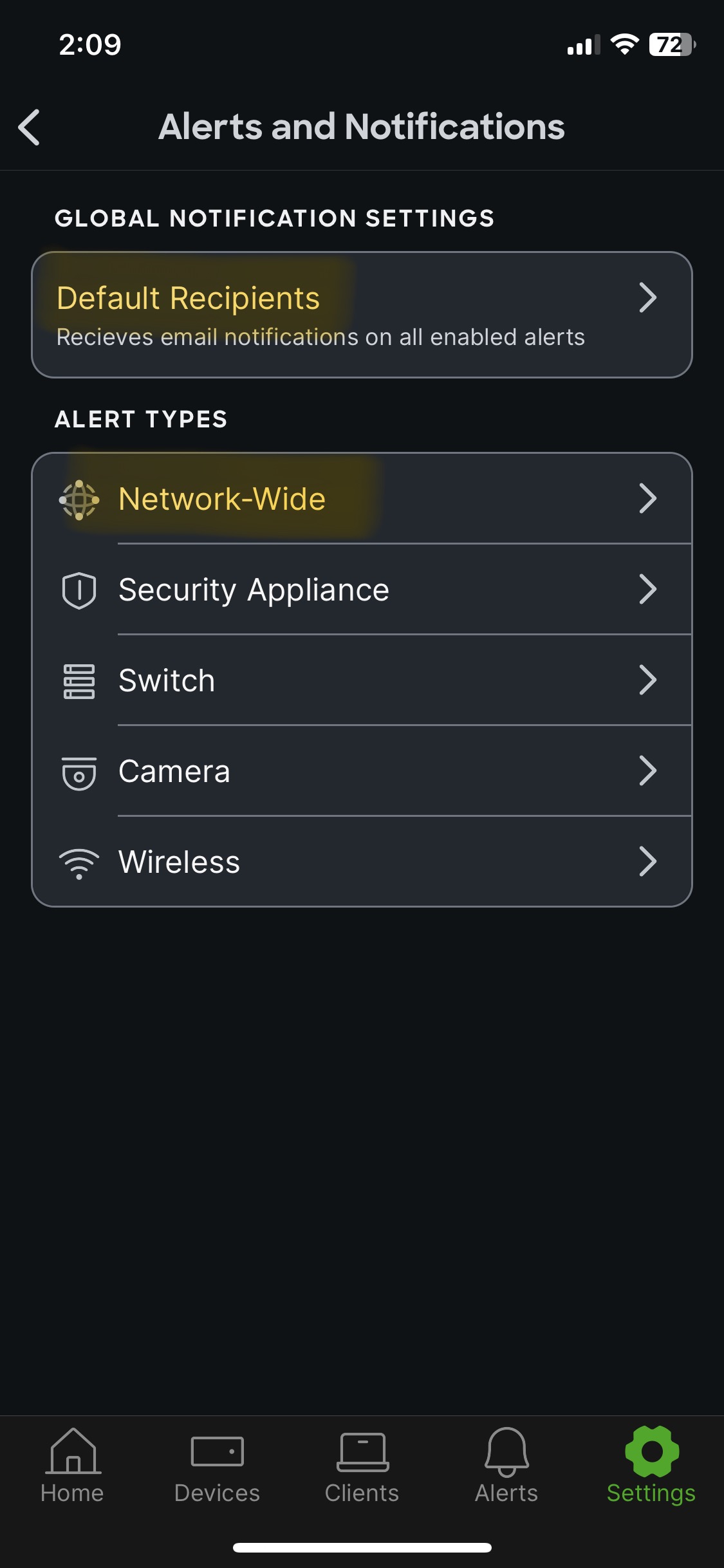

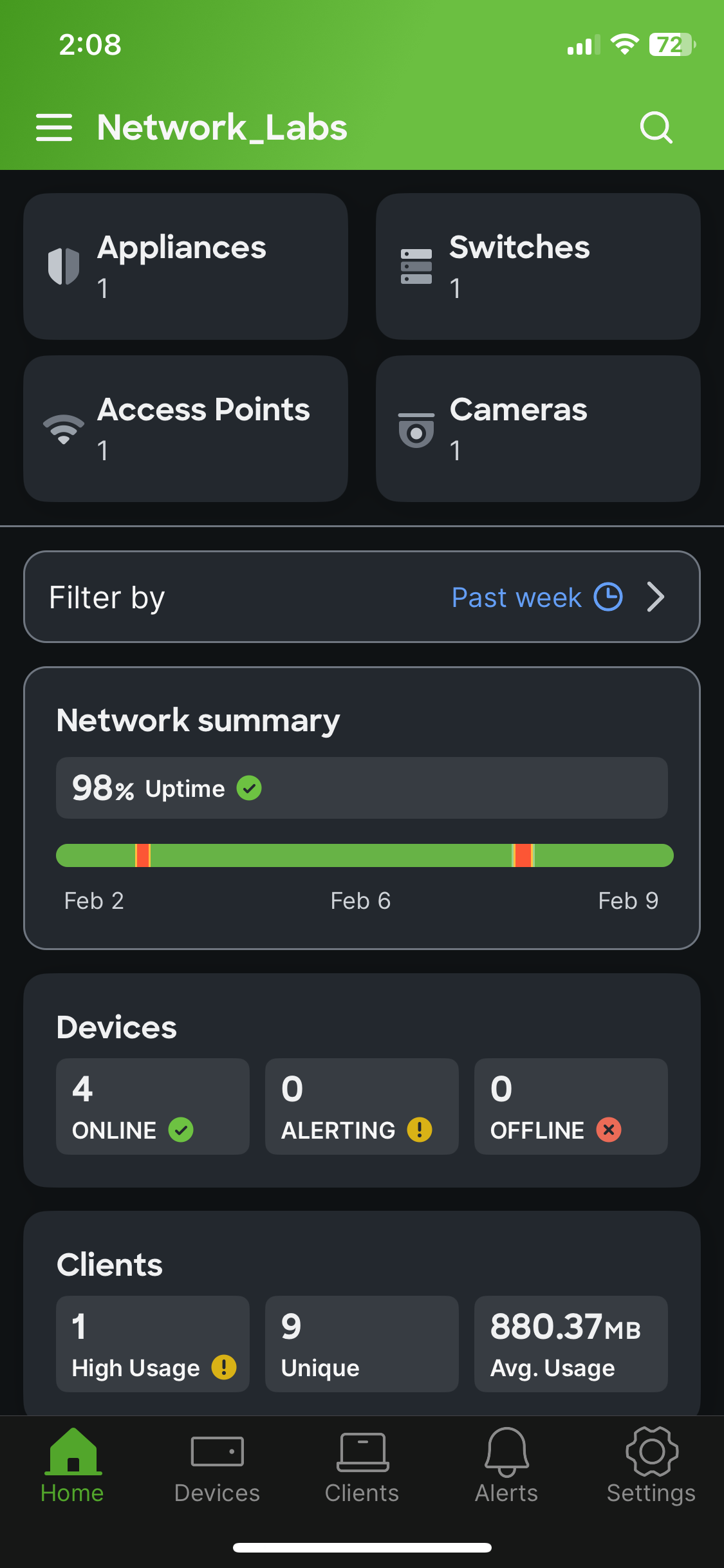

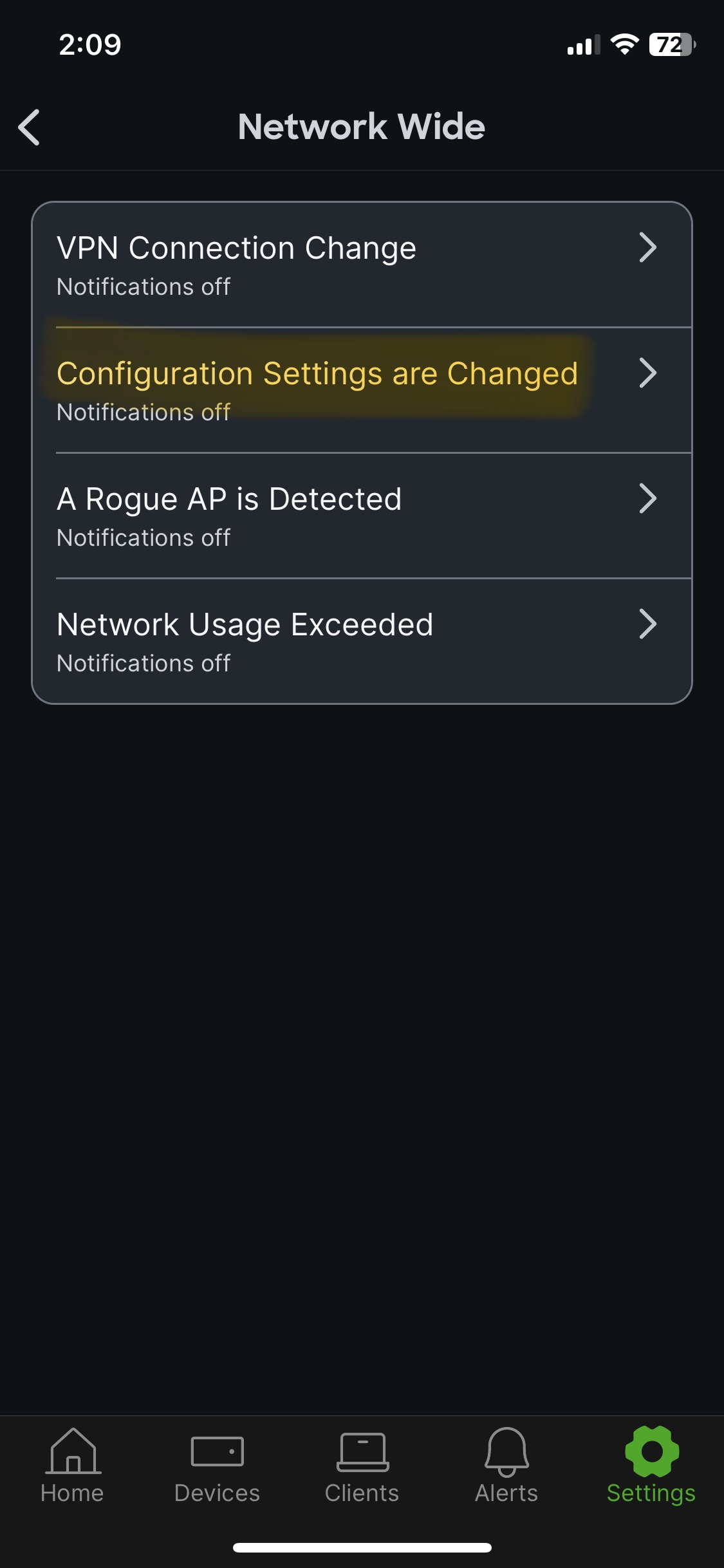

Network-wide Alerts for Mobile

  • The Meraki mobile app for IOS and Android offers push notifications to app users for all notifications configured on the app

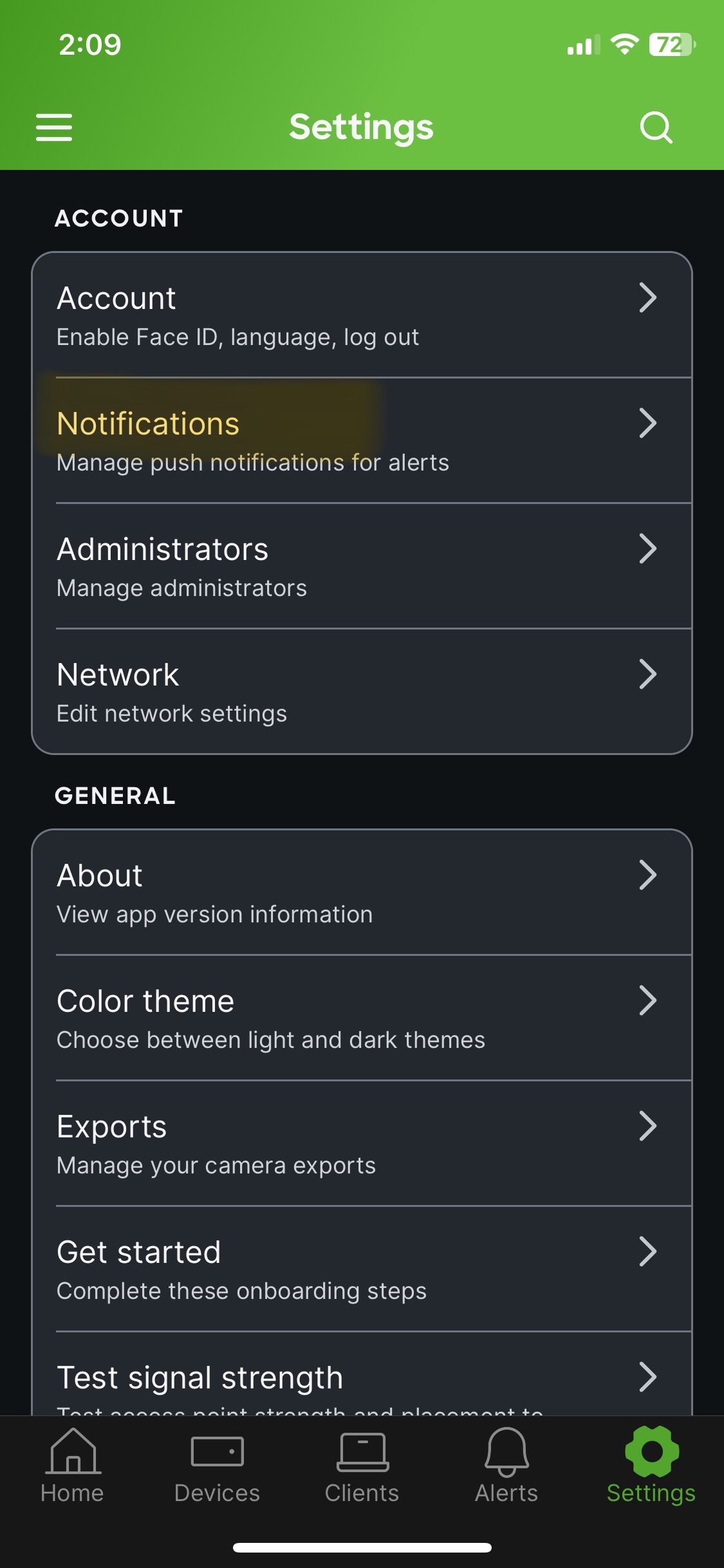

  • These settings can be configured in the app under 'Settings >> Notifications'

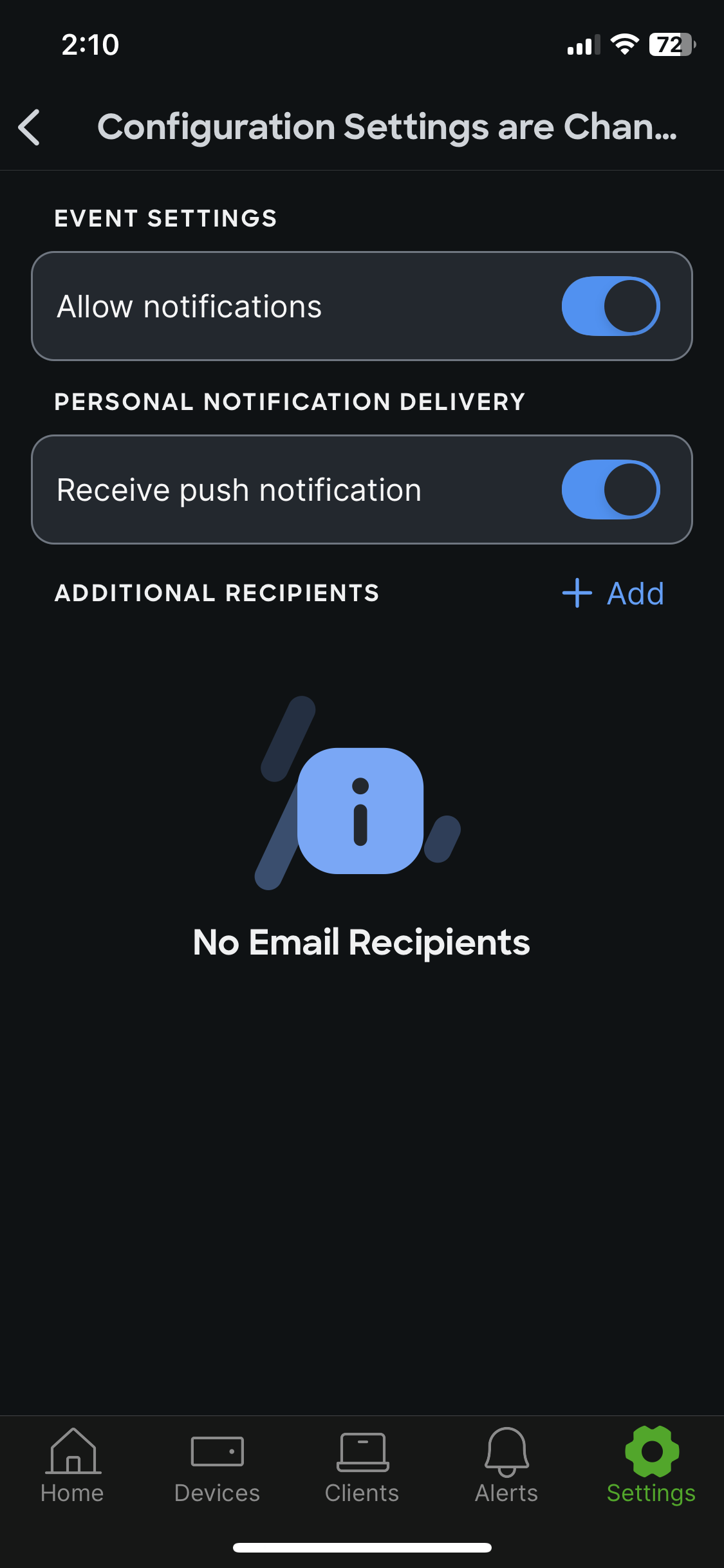

  • Mobile App Configuration Parameters
    • Allow Notifications
    • Receive Push Notifications

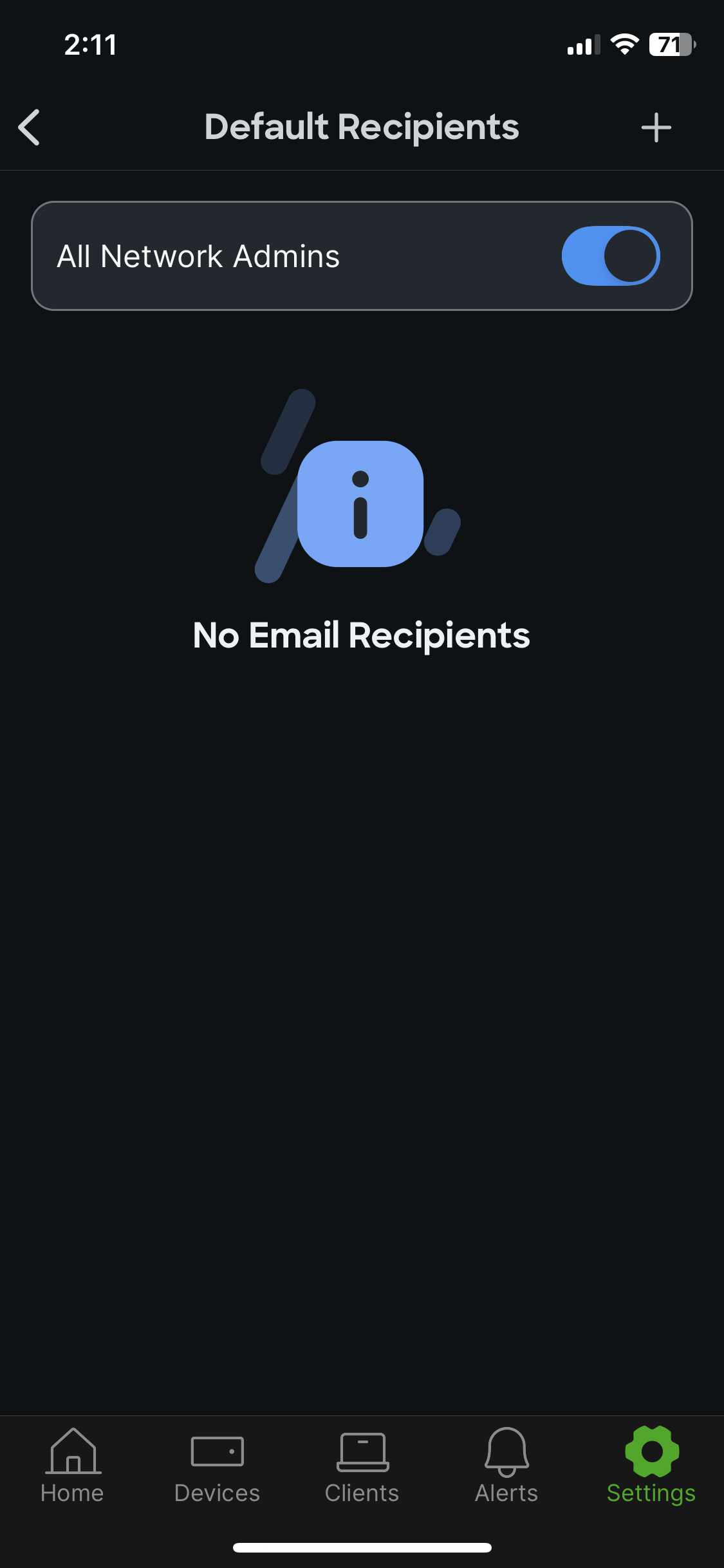

    • Default Recipients
    • Additional Recipients
  • Per Cisco, notification configurations set in the mobile app also affect notification configurations in the Meraki Dashboard web, and vice versa. However, mobile push notifications are configured per-device rather than network-wide, as mobile push notifications are a mobile app only feature

Network-wide Configurable Alerts List

  • Network-Wide Alerts
    • Configuration settings are changed
    • A VPN connection comes up or goes down
    • A rogue access point is detected
    • Network usage exceeds (x) KB/MB/GB/TB in 20 minutes/4 hours/1 day
    • Mute wireless alerts based on switch port schedules
  • Wireless Alerts
    • A gateway goes offline for (x) minutes
    • A repeater goes offline for (x) minutes
    • A gateway becomes a repeater
    • Clients have poor signal strength
    • Clients have high bandwidth usage
    • Clients fail to connect to the wireless network
    • Uplink IPv6 duplicate address detected
  • WAN Appliance Alerts
    • A WAN appliance goes offline for (x) minutes
    • The primary uplink status changes
    • The DHCP lease pool is exhausted
    • An IP conflict is detected
    • An IPv6 duplicate address is detected on the WAN uplinks
    • A DHCPv6-NA renumber is detected
    • A DHCPv6-PD renumber is detected
    • Cellular connection state changes
    • A rogue DHCP server is detected
    • Malware is blocked
    • Malware is downloaded
    • Clients connect or disconnect from the LAN
    • VLAN prefix shortage detected
    • HTTPS inspection certificate error occurs
  • Switch Alerts
    • A switch goes offline for (x) minutes
    • A new DHCP server is detected on the network
    • A client is detected sharing its IP address via NAT
    • Any/specific port(s) goes down for more than (x) minutes
    • Any/specific port detects a cable error
    • Any/specific port changes link speed
    • A power supply goes down
    • A redundant power supply is powering a switch
    • Unidirectional link detection (UDLD) errors exist on a port
    • A switch is operating at critical temperature
  • Camera Alerts
    • A camera goes offline for (x) minutes
    • Custom recipients for motion alerts
    • A camera has a critical hardware failure
    • A camera has a potential issue with Cloud Archive

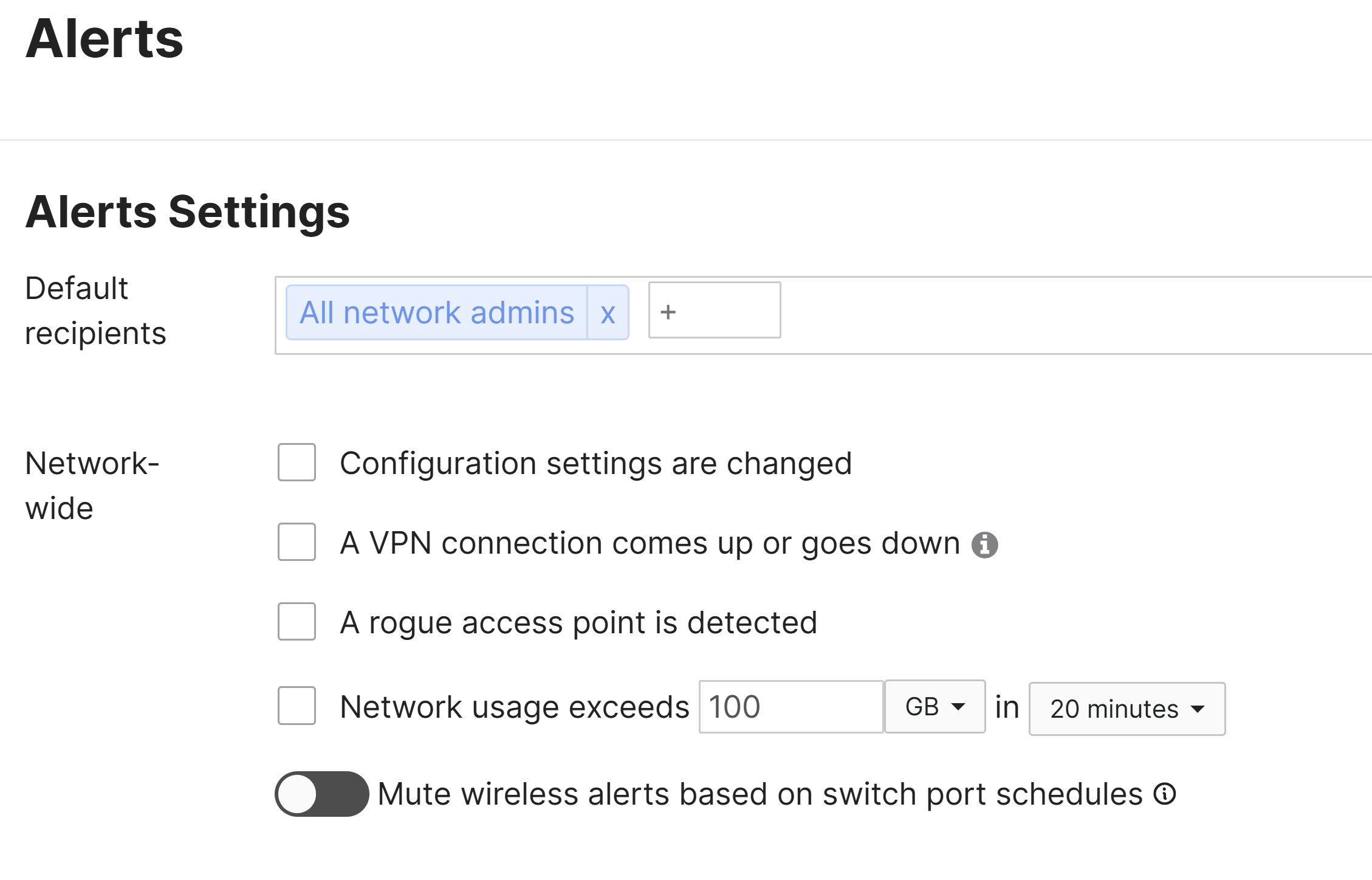

Network-wide Alerts - Network-wide

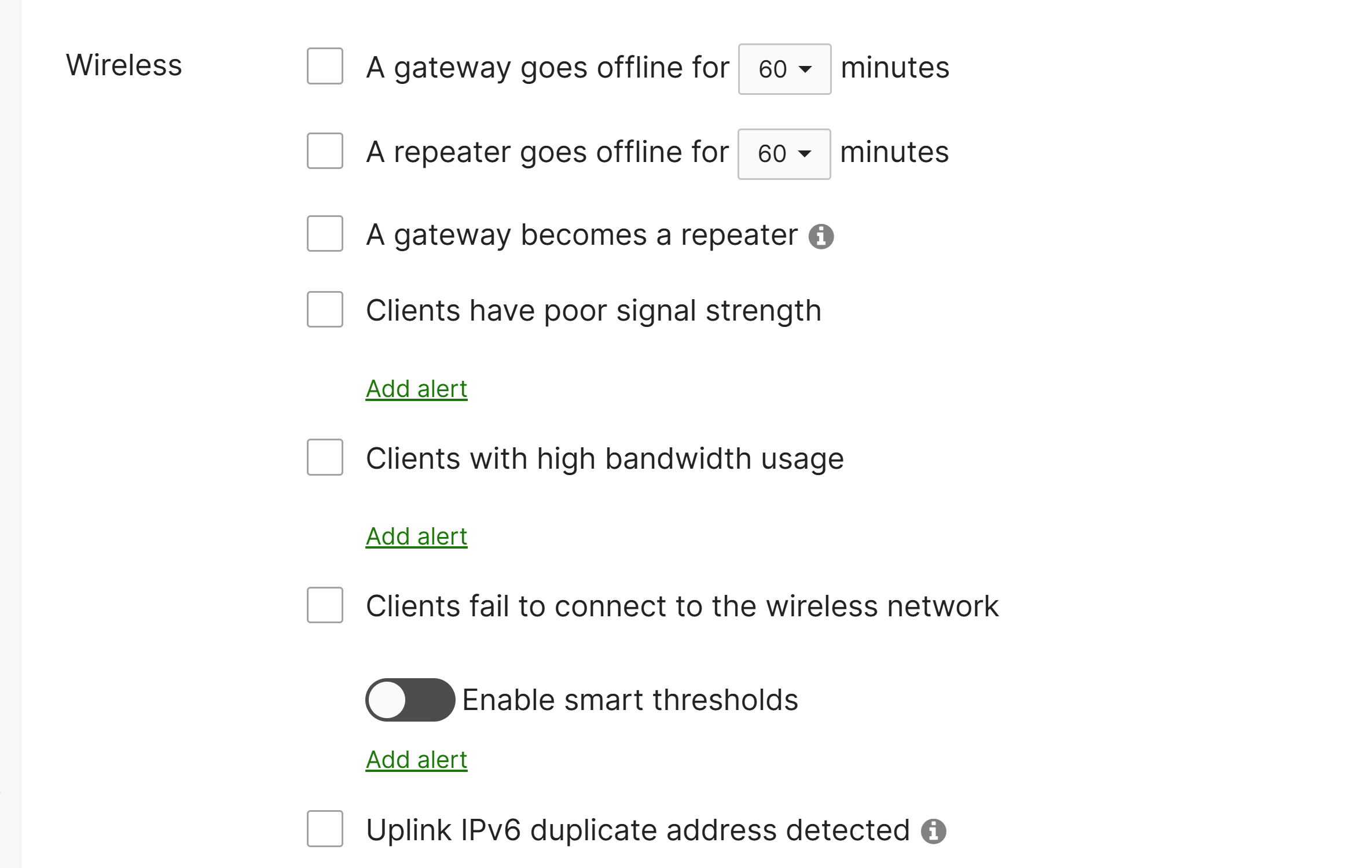

Network-wide Alerts - Wireless

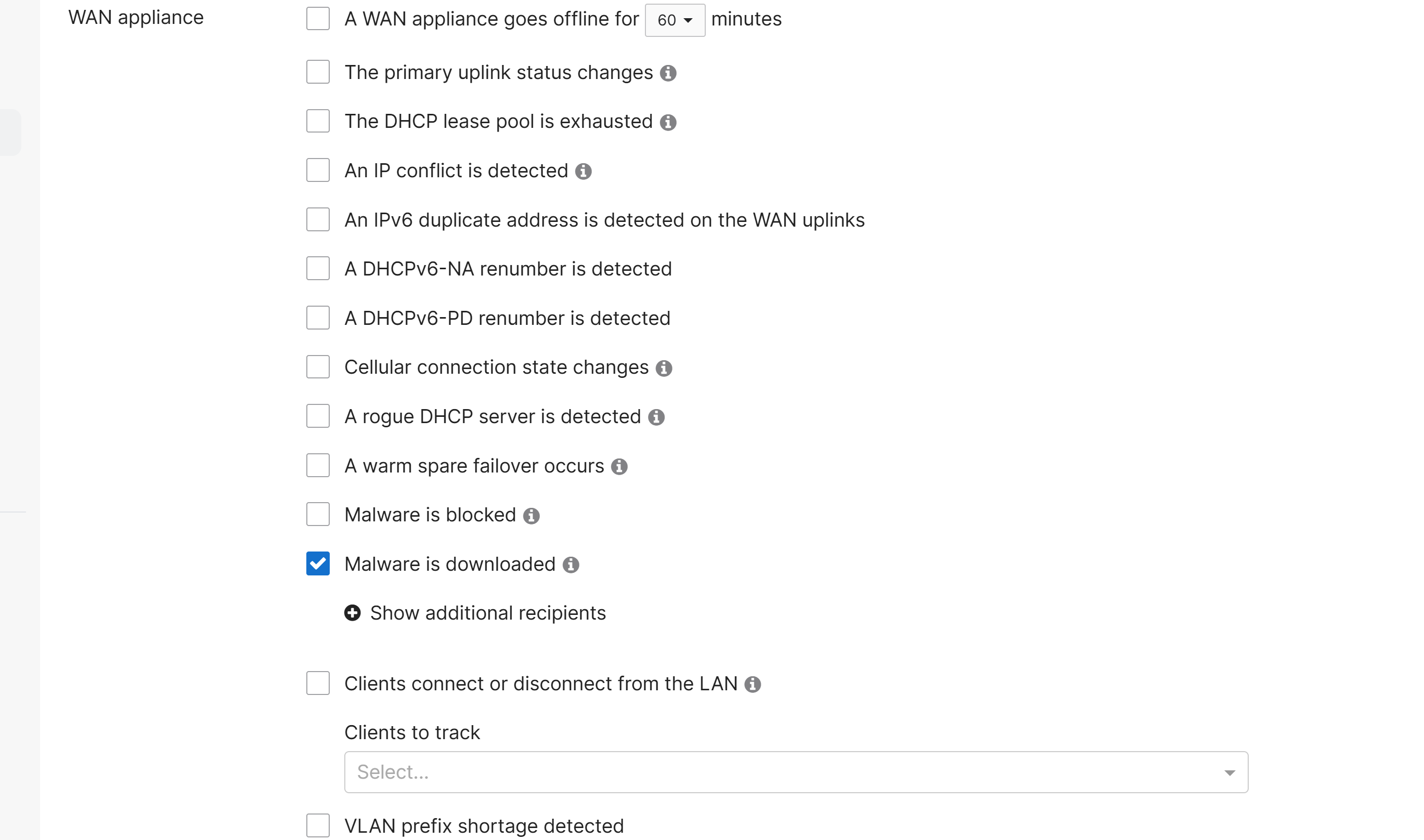

Network-wide Alerts - WAN Appliance

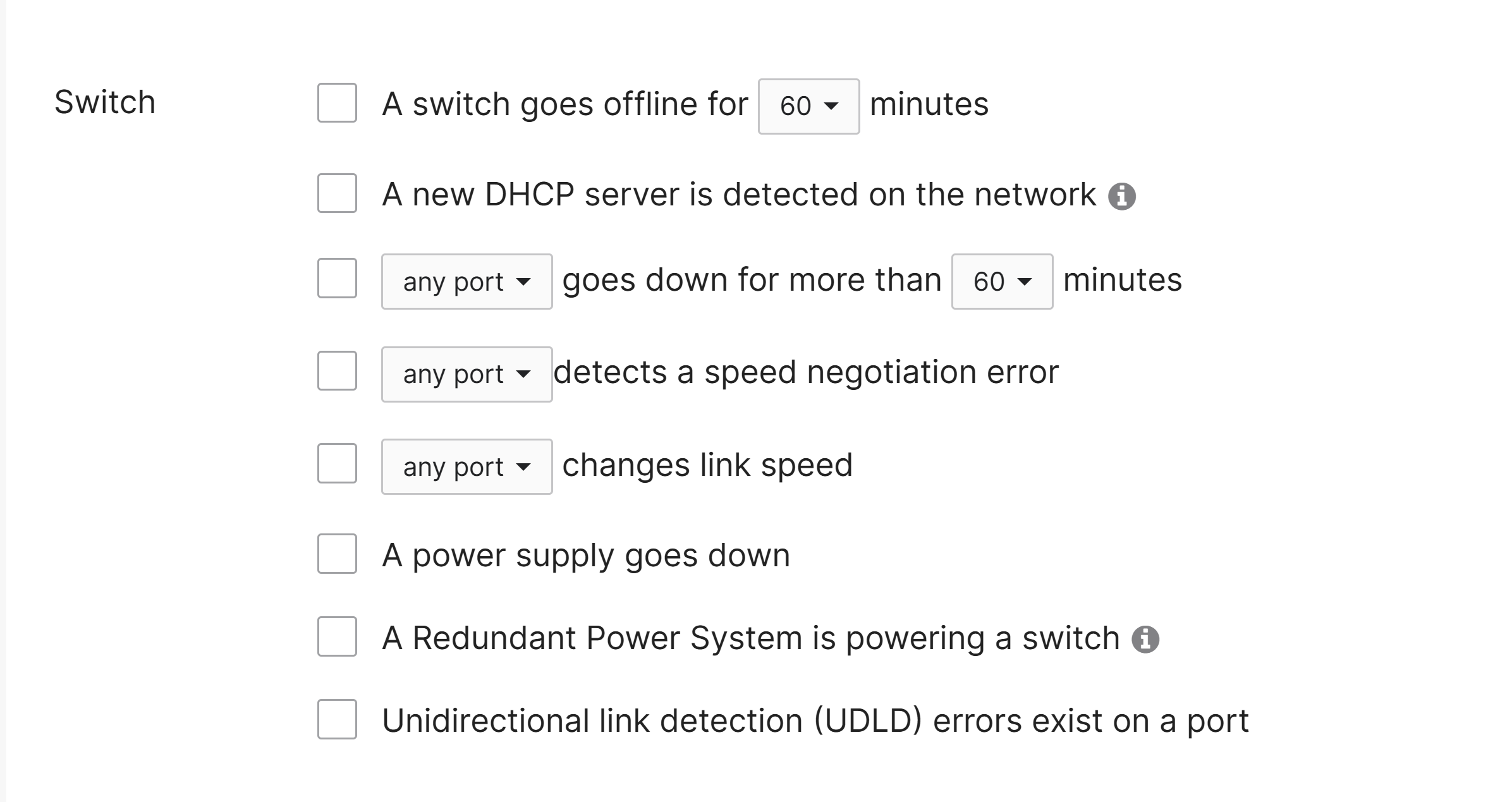

Network-wide Alerts - Switch

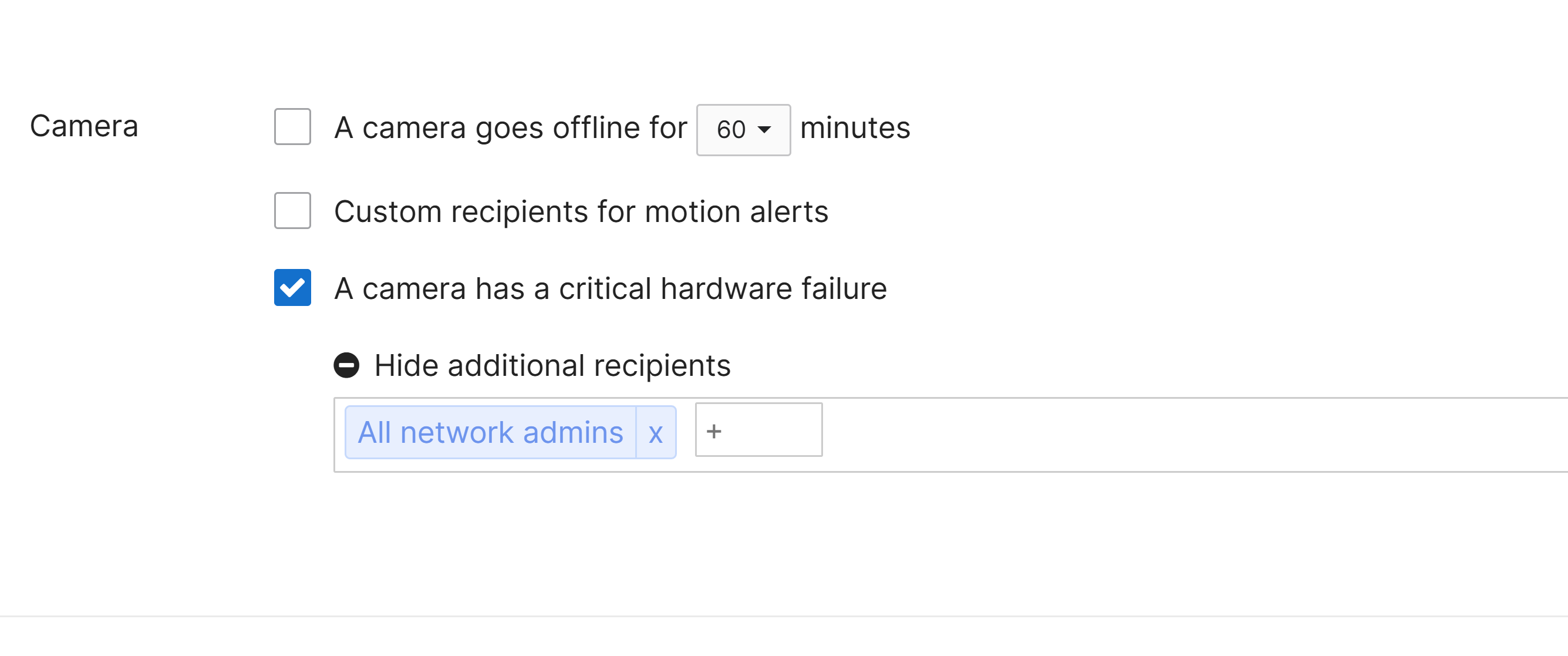

Network-wide Alerts - Camera

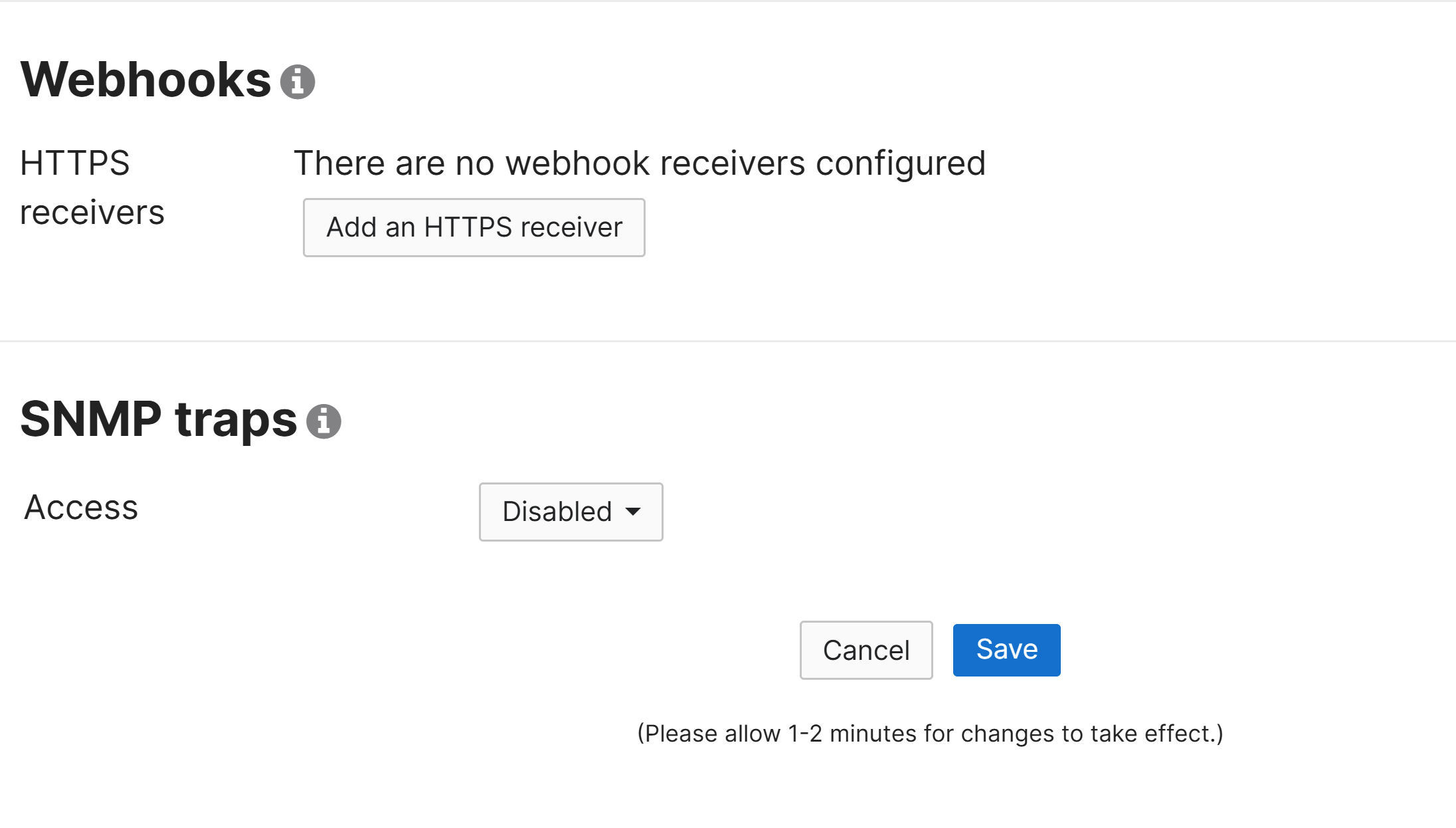

Network-wide Alerts - Webhooks & SNMP Trap Features
